ESP8266 Wifi Module With Adapter DHT 12

Previous 3 / 12 Next

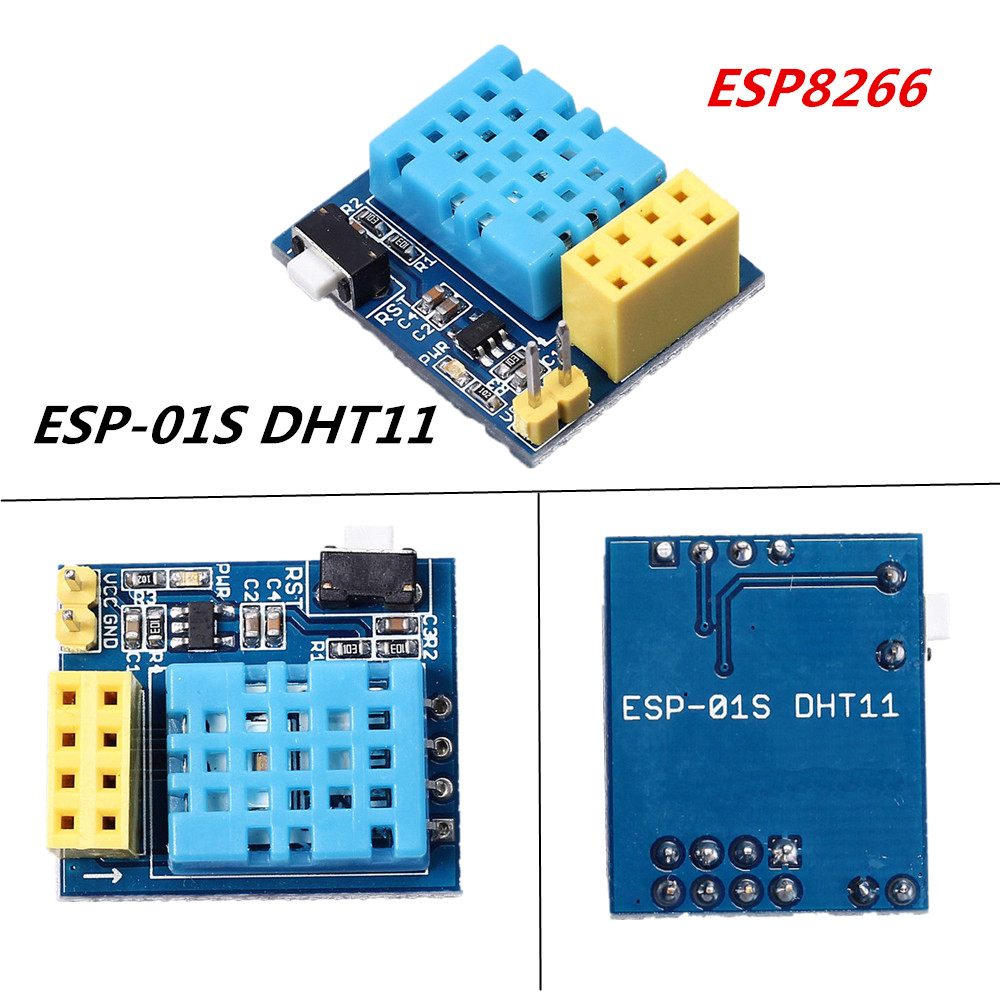

ESP8266 Wifi Module With Adapter DHT 12 MODULE


DHT11 Module



Description:

Master: ESP-01 / ESP-01S (this module does not include ESP-01 / ESP-01S)
Temperature and humidity sensor: DHT11
Operating voltage: DC 3.7 V-12 V (support 3.7 v lithium battery power supply)
Measuring range: 20-90% RH 0-50 C
Measurement accuracy: Temperature: 2 Humidity 5% RELATIVE HUMIDITY

Application example:

1. Power source: 3.7 V-12 V DC power supply connected to VCC GND (2.54mm pin)
2. Download the program to ESP-01S
3. Insert ESP-01 / ESP-01S into the 2 * 4 Pin

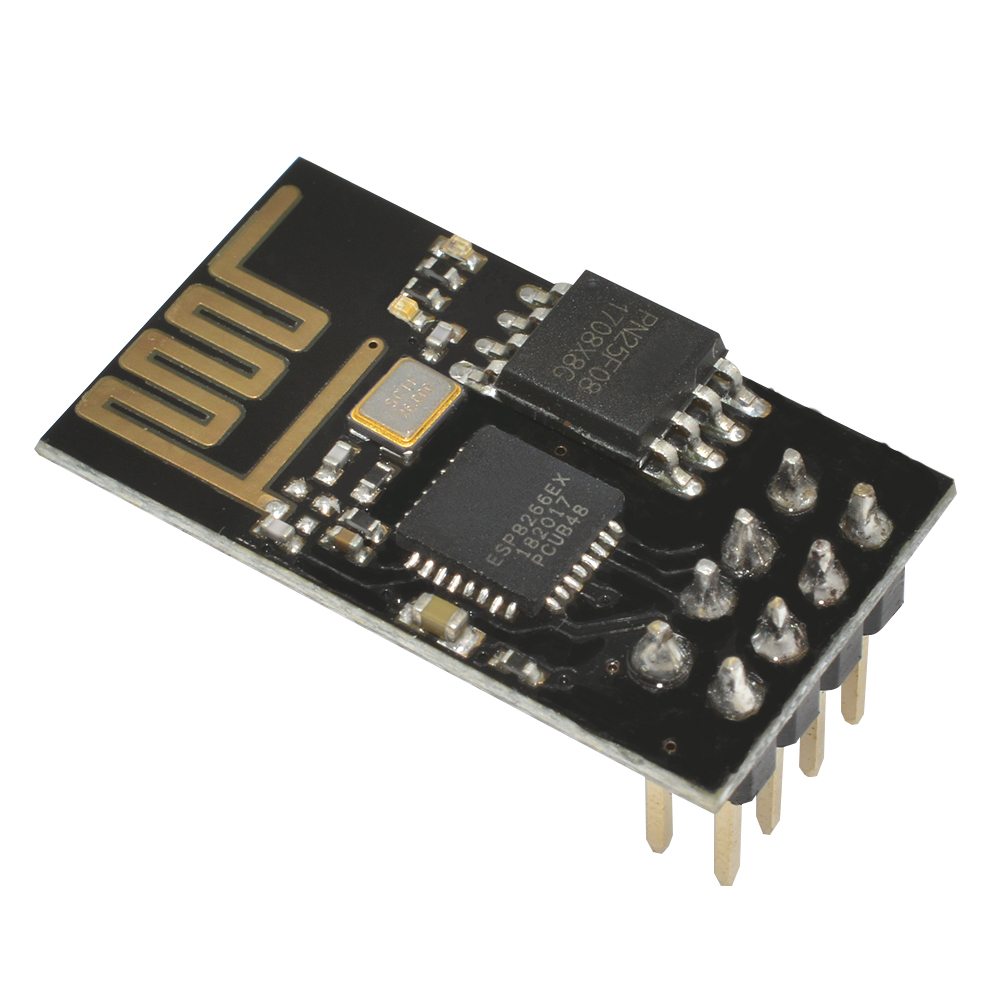

ESP-01 Wireless Module

Features:

SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated MAC/baseband processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines
Solutions

Supports APSD for optimal VoIP applications
Patented spurious noise cancellation algorithm for integration in SOC applications
Supports Bluetooth co-existence interface
Self-calibrated RF to ensure optimal performance under all operating conditions
Zero factory tuning
No external RF components
Specifications

802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 11 MIMO, 21 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)
